Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve

Name: Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve
Brand: Changzhou Chenglei Valve Technology Co., Ltd.
SKU: Q series
Price: 1.00 USD
Availability: InStock

Brand Name:	Chenglei
Model Number:	Q series
MOQ:	1
Price:	US$100.00-2,000.00
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CCC, ISO, CE

Temperature:

Ordinary Temperature

Connection:

Flange

Material:

Aluminum Alloy

Motor:

Electric Motor

Thermal Protection:

Yes

Explosion Proof:

Yes

Battery Backup:

Yes

Bluetooth Connection:

Yes

Application:

Valve/Damper/HVAC

Transport Package:

Wooden Case

Specification:

Electric Rotary Actuator

Production Capacity:

30000/Year

Packaging Details:

23.00cm * 34.00cm * 24.00cm

Supply Ability:

30000/Year

Highlight:

Quarter Turn Electric Valve Actuator

Intelligent Electric Valve Actuator

High Speed Electric Valve Actuator

Product Description

Replace Belimo/bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve

Chenglei manufacture the electric rotary actuator Z Series and Q Series.It is applied for gate valve, globle valve,throttle valve,ball valve,butterfly valve,damper,slide plate gate,adjusting valve,regulating valve and HVAC.
Our electric actuator can be widely use in various industries including oil and gas, power plants,water treatment,chemicals, processes,paper and pulp, and flow control automation.
Voltage:380V/110V/220V/440V/660V AC or 12V/24V DC for your option. Single phase or Three phase.
Rated frequency:50HZ/60HZ.
Speed:9r/min,18r/min,24r/min,36r/min/48r/min
As for control method, on-off or modulating.4-20mA.
As for the protocols,Profibus/profinent/modbus/HART/FF/Device net/ESD
Motor duty:shor time: S2 10min,15min,30min. or continuous time:S1/S3/S4/S6 24%,40%.
Connection:JB2920 Torque type or ISO5210(GB/T 12222) Thrust flange type
Protection grade: IP65/IP67/IP68 for your option.
Insulation level: F level
Certificates:CCC/UL/CE/IECex/SIL/RoHS/ ISO/CE/Gost
Enclosure: NEMA 4/4X/7&9 models enclosure can be your option.
Environmental temperature: -20~+60 ºC (special orders -60~+70 ºC);
Relative humidity: ≤ 95% (at+25 ºC);
Explosion proof:ATEX/ Exd BT4/CT4;
Anti corrosion coating: electrostatic powder spraying.
Body Material:Aluminum alloy/stainless steel/carbon steel.
High speed,High torque,adjustable speed and battery backup and bluetooth and local or remote control can be your option.
Heater and thermostat standard.
Manual override with handwheel

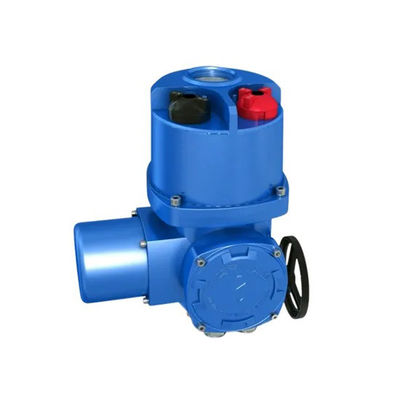

Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve 0

Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve 1

Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve 2

Replace Belimo/Bernard High Speed Intelligent Quarter Turn Electric Control Actuator for Butterfly Valve 3
